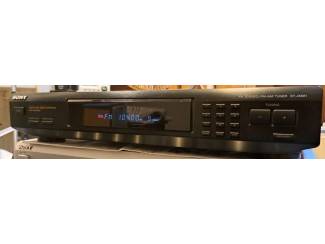

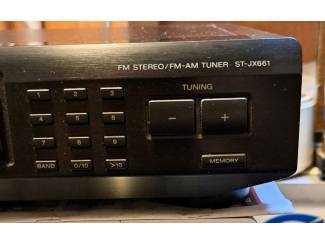

Sony ST-JX661 Stereo digitale tuner AM/FM

Te koop Sony ST-JX661 Stereo digitale tuner AM/FM., hier te beluisteren, ontvangst goed en houd geheugen vast.

A hi-fi quartz lock digital synthesizer tuner with a digital frequency display housed in a metal case.
With memory for 20 FM and 10 AM preset radio stations, push buttons for Tuning up and down, Memory scan, Stereo/Mono, and Band (AM/FM). On the back, a 75 ohm FM antenna coaxial connector, terminals for AM antenna, RCA phono sockets for Line Output.

Specifications:

Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)

Dimensions (WHD)  430 x 82 x 295 mm / 16.9 x 3.2 x 11.6 inch

FM tuner section:

Frequency range
87.5-108MHz
Aerial terminals
75?, unbalanced
Sensitivity at 50dB quieting

mono
stereo
22.1dBf, 7µV/75?
42.1dBf, 70µV/75?
Usable sensitivity (IHF)
19.5dBf, 5µV/75?
S/N at 75kHz dev.
80dB (mono), 75dB (stereo)
Harmonic distortion at 1kHz
0.3% (mono), 0.5% (stereo)
Frequency response
30Hz-15kHz +0.5dB,-2.0dB
Separation
35dB at 1kHz
Selectivity
55dB at 400kHz
Output at 75kHz dev.
775mV, 4.7k?
AM tuner section

Frequency range
522-1,611kHz
Usable Sensitivity
500µV/m (with AM loop aerial)
S/N ratio
54dB (50mV/m, 999kHz)
Harmonic distortion
0.5% (50mV/m, 400Hz)

Power requirements: 220-230V AC 50/60 Hz
Power consumption: 7 Watts

Opsturen mogelijk.
